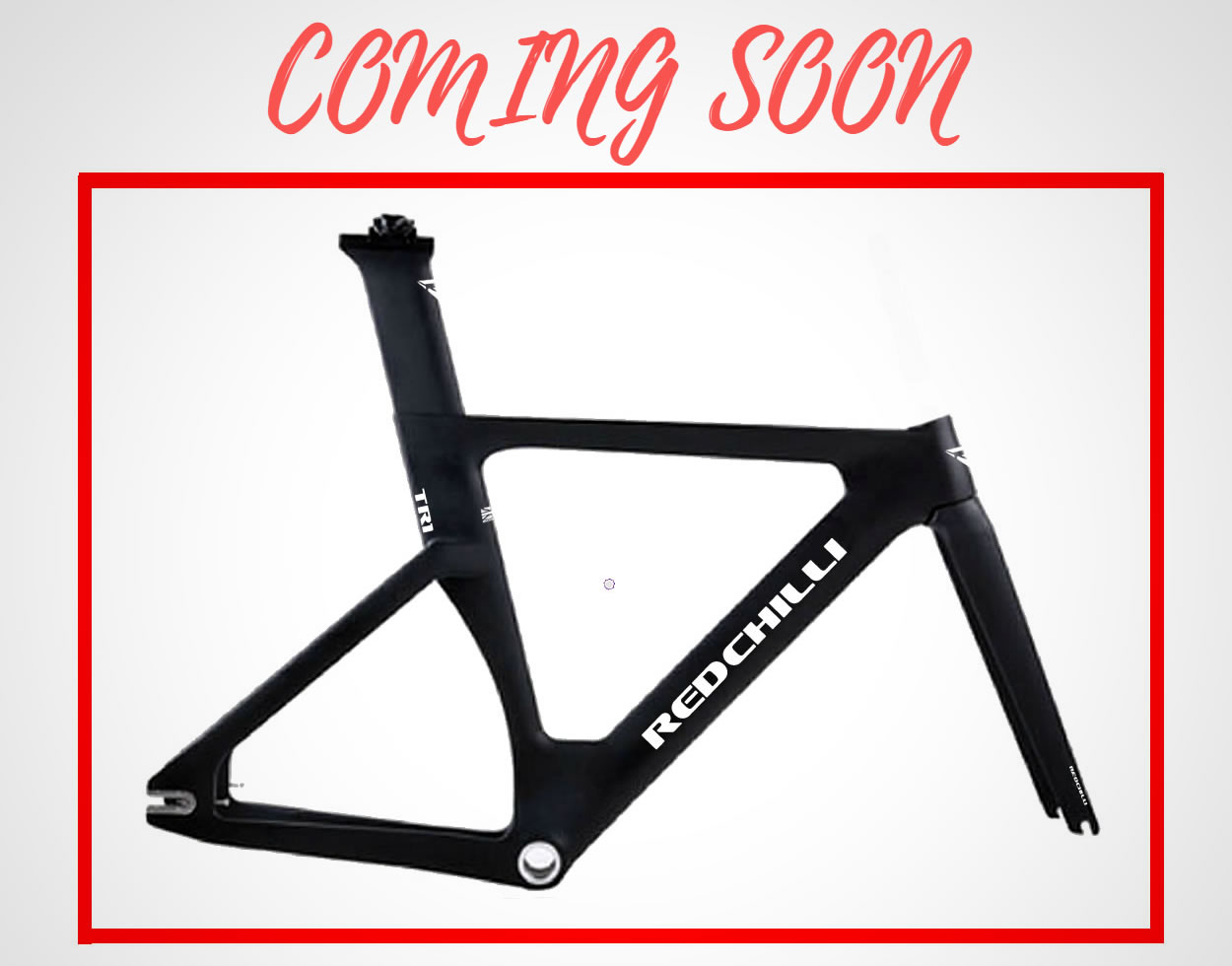

Redchilli TR1 “Pista”

If you are a track rider, then you are no doubt already fast. But how would you like to go faster? Silly question really, as we know you do, but we have the easy answer. Redchilli are delighted to confirm that we will very soon be releasing our first ever Track Frame, and what a machine it is.

The remit for our TR1 “Pista” was really rather simple; to produce the fastest possible track frame, but also one that follows the Redchilli ethos for Absolute Quality – Absolute Value. And the result? A frame that has been optimised for all track disciplines – be it Sprint, Points Race, Madison, Kierin or Scratch Race Events. Aerodynamically superior and with a frame stiffness that provides an almost loss-free power transfer, TR1 is right on the button for speed, precision, agility and responsiveness.

This frame is well thought out, too. For example, the non-drive Chainstay (left hand side) is 79mm while the drive-side is 67mm. This is to account for the higher forces and stress levels that a track frame endures due to the constant “anti-clockwise” direction of travel. It’s the small, unnoticed differences that make all the difference.

With track racing, it’s not so much every second counts. It’s more factual that every one-hundredth of a second counts. Redchilli TR1 “Pista” is determined to give you that difference edge.

  • Every single Redchilli TR1 is hand built here in Great Britain.
  • Manufactured using a blend of Toray T700/T800/T1000 carbon to provide the perfect balance for strength and lightness.
  • The non-drive Chainstay (left hand side) has a height of 79mm compared to 67mm for the non-drive chainstay. This helps to offset the higher stress levels placed upon a track frame.
  • All main stress areas of the frame are aerodynamically oversized (head tube, bottom bracket, top tube/seat tube juncture) in order to reduce flex.
  • EPS manufacturing process produces a state-of-the-art frameset that has been optimised for aerodynamics, maximum rigidity and durability.
  • Adjustable, open-end rear dropouts.
  • Rigorous testing ensures our frames meet and surpass ISO 4012 standards.
  • TR1 is compatible with current UCI Regulations.
  • Max tyre 700*25

Please do not hesitate to contact us if you require any assistance with regards to correct frame size.

Contact us
Categories: ,

Available to Special Order

With Your Choice of Colour Scheme

Explore our available options and reach out for purchase enquiries. Our team is here to assist you in selecting the perfect bike and answering any questions you may have.

Enquire today

Option 1

  • Frameset
  • Fork
  • Seatpost

*Standard Colour Scheme

£1495.00

Complete bike

If you would prefer a complete bike build, then remember, every Redchilli is built to customer specification – because it’s all about you.

Visit the TR1 “Pista” complete bike to find out more.

view Complete Bike

Choose Your Colour. Ride Your Style

Personalise your Redchilli Bike by selecting from our standard or special colour ranges.

  • Please note: a surcharge of £80 applies to our Special Colour range.

Custom Bike Build Consultation

At Redchilli, every bike is built just for you.

Built to your exact specifications for a truly personalised ride. Your bike should reflect your style, needs, and riding goals, which is why we focus on creating a one-of-a-kind experience from start to finish. Ready to bring your dream bike to life? Our expert team is here to guide you through the entire process, from selecting the perfect components to ensuring a flawless fit. Contact us today to start your Redchilli build and create a bike that’s uniquely yours.

Contact Us
  • Additional costs will apply for your own, full custom design.
  • Redchilli reserves the right to modify, without prior notice, all product information shown here.
